PV Project Thermography - Control Home (5/20/98)

East Wall

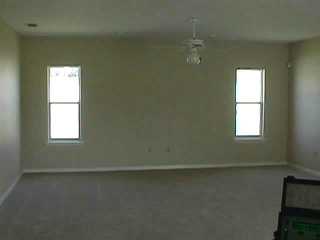

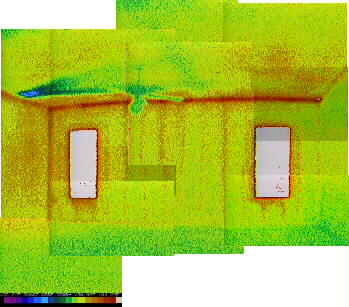

This set of photos shows a montage of the east wall taken in the early afternoon. Visible in the IR photograph are the furring strips between the drywall and the concrete, one of the supply registers (the blue and green object on the left side of the ceiling), the ceiling fan, and the top plate. The temperature difference between the furring strip backed-drywall and the non-furring strip backed-drywall is approximately 1F.

The temperature range is from 66°F (darkest colors) to 84°F (lightest colors).

Figure 1a.
