Stylized Text: ZEH: Lakeland, Florida.

PV Project Thermography - Comparison (5/12/98)

Another Roof Comparison

This comparison of the roofs needs virtually no explanation. The white tile roof of the PVRES house is clearly cooler than the dark shingles of the control house. Notice the red/orange/yellow roofs of the other houses in the neighborhood to the left and the right of the PVRES house.

The temperature range is from 60°F (darkest colors) to 150°F (lightest colors).

Control House

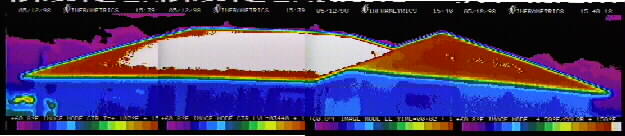

Figure1.

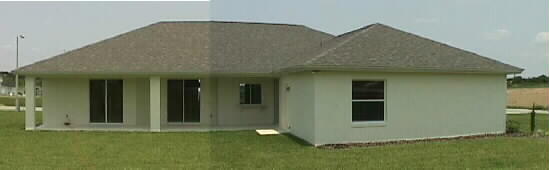

Figure1a.



PVRES House

Figure2.

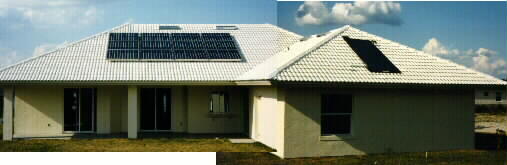

Figure2a.
